Portable console released in 2011

This console started the Nintendo 3DS family of systems, which brought stereoscopic 3D visuals to players without the need for special glasses. Except for the Nintendo 2DS and New Nintendo 2DS XL systems, which opted to remove the feature.

SPR-001


Nintendo 3DS XL


The Nintendo 3DS XL is similar in design to the Nintendo 3DS, but is generally larger, providing a more comfortable console for adults. A few buttons and cosmetic features are moved around to adapt to the new size increase, but this is largely the same console as the original Nintendo 3DS.


SPR-001(-01)

Nintendo 3DS XL consoles with the code SPR-001(-01) are development consoles which are used for testing games in a standard player environment. These consoles don't offer much in terms of debugging ability and generally aren't much different from standard Nintendo 3DS XL consoles, only special software in the NAND and BootROM. These dev units can be used to launch software from developer Nintendo 3DS and Nintendo DS cartridges, the NAND and the SD card, whilst bypassing the Home menu. They can't launch standard retail games or access the eShop.


SPR-001(-02)

The retail display model, this model is largely the same as the retail model, except the usual WAP-002 charger port has been swapped with a Micro HDMI Type-D port. Additionally, the system will not boot up unless connected to power adapter, presumably to stop vandals from stealing them from shops.


SPR-001(-03)

Another retail display model, this model is also mostly similar to the original model, and even retains the WAP-002 charging port. However, like the original retail display model, it needs to be plugged into a power adapter at all times, otherwise it will power off.


SPR-001(-06)

The Louvre units are a special version of the Nintendo 3DS XL, which can only be found in the famous French art museum, the Louvre, intended for visitors to use as interactive guides. It does not have working speakers, though earphones can be used with the system as they are available for rental for additional charge at the Louvre. The Wi-Fi slider is either fake or glued in place. The console only has a minimal OS, basically making it useless without the CTR Guide Boot cartridge (which causes the console to launch directly into the software, and is usually screwed into the console to prevent removal by visitors). It's also speculated it may lack infrared.




SPR-002
Unidentified

SPR-003

Nintendo 3DS XL Battery

The built-in battery pack for the Nintendo 3DS XL. In addition to being included with the console, you can also purchase this battery from the Nintendo homepage in certain regions. This battery is also used for the New Nintendo 3DS XL.



SPR-004

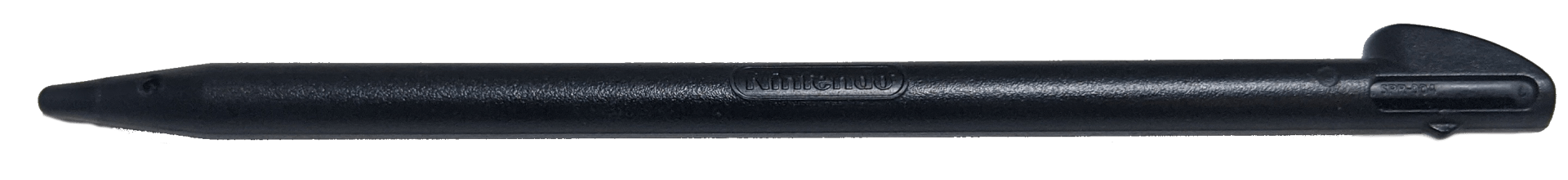

Nintendo 3DS XL Stylus

The Nintendo 3DS XL stylus cannot be stretched like the original model's stylus, but sits at a large 96mm size and can be stored in the main body when not in use. The stylus comes included with the console.



SPR-005
Unidentified

SPR-006
Unidentified

SPR-007

Nintendo 3DS XL Charging Stand

The Nintendo 3DS XL charging stand was released the same day as the console, but was released separately, unlike the original model which came packaged with a charging stand. Simply connect the AC adapter and place the main console in the charging stand to charge.



SPR-008
Unidentified

SPR-009

Nintendo 3DS XL Circle Pad Pro

The Nintendo 3DS XL Circle Pad Pro adds an additional circle pad and ZL/ZR buttons when attached to the console. However, it can only be used with compatible software and requires a AAA battery. It communicates with the console using an infrared signal, with an infrared port positioned roughly where the console's infrared port would be when inserted in the Circle Pad Pro. This accessory does not come with the exclusive strap that the original 3DS Circle Pad Pro comes with.
